| CRUSHED W/C R1100(GU75) REPAIRED WITH O/C R1100's FLAME(GV73) |
|||||||||||||||
|
|||||||||||||||
 |
with Direct Ignition Units and Full Fead-Back Sensing
was adopted for the purpose of almighty Engine Management
 |
 |
| HKS F-CON V-PRO3.2 Engine Management Unit |
Injection Unit for GSX-R1000 was choosen Cylinder pitchs needed to be changed |
 |
 |
| Lt. : Crank Angle Rotor for GSX-R1000 Sencing span would be changed to 30 deg. (Rt. Original Pick-Up Rotor of GSX-R1100W) |

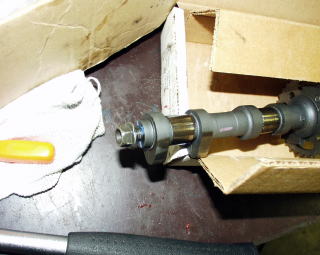

Drilled and Tapped #1 Cyl. Side of WEB CAM. Cam-Angle-Sensor would be placed here. |
 |
 |
| Magnet Sensing Unit for GSX-R1000 was placed like these images. |
|
 |
 |
| Direct-Ignition Units for S15 NISSAN (Power Transistors internally built) Atomospheric Temperature Sensor (Green Coupler on Lt. Pict.) |
|
 |
 |
| Fuel Pump and Fuel Regulator (Genuine parts for HAYABUSA) |
Genuine Radiator Core for GSX-R1000 SETRAB Oil-Cooler Core |
 |
 |
 |
 |
 |
 |
